ZH-9602/F Vane

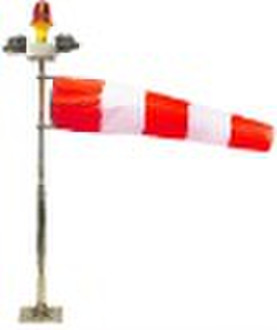

ZH-9602/F VaneThis product can indicate the wind direction in final approach and taking off and make a general indication for the wind speed. Every airport must be equipped with at least one vane according to the regulation of ICAO. For the installation locate, it must not be intervened by the nearby object or airflow blew by the rotary wing and can be seen from the helicopter from at least 200meter. Description ZH-9602/F Illumination Vane can be used as a sign in all kinds of airport to observe the wind power and wind direction in both daytime and night. The wind sleeve is installed in a 360°bearing rotation gear, and there are two 100W metal tungsten halogen lamps on the top to provide illumination at night, and there is also a set of red aviation obstruction light on the upper top. The wind sleeve is made of corrosion resistance and High Temperature Resistance nylon rain protection material. Operating voltage:220VAC, 50HZ. component part Top illumination unit: two 100W tungsten halogen lamps and one set of red aviation obstruction light have been installed.Wind direction indication part: it includes one red-and-white wind sleeve, one wind sleeve frame and one 360°rotation gear.Installation bracket and base component: all the bracket are made of stainless steel. Installation Cover the wind sleeve over the wind sleeve frame and use magic tape to fix it. Check whether the wind sleeve frame is fixed stably with the rotation gear; make sure the two holding pawls of wind sleeve frame is well fixed. Connect the vane as per the figure, and connect the leading wire according to the circuit requirement and check the lamp, then use 4 M16 bolts and nuts to fix the vane on the concrete base. Check the verticality of installation support, and adjust it if it is oblique. Check whether the wind sleeve can rotate well; if it is stuck, use lubricating agent (oil). Make sure to check it once every half year. Technical Parameter The whole vane with corrosion resistance is welded by stainless steel pip. Light stainless steel The illumination lamp and obstruction light is optional, and 2100W halogen flood lamps and one 10 red obstruction light are available. Input voltage: 220V, 50Hz (6.6A power supply method is also available according to actual requirement). The wind sleeve has two dimensions: The diameter is 320mm, the diameter at small end is 170mm and the length is 1.2mThe diameter is 560mm, the diameter at small end is 310mm and the length is 3.5m The color is red-and-white or orange. This product complies with the Consultation Announcement AC150/5345-27C and L-806 of U.S. Federal Aviation Administration (FAA), Appendix 14-Airport of International Civil Aviation Organization (ICAO) and the specifications in Part Four of Airport Design drafted by ICAO. The max designed wind speed is 260kph. Light wind sleeve and stainless steel wind sleeve frame. Connect the wire in the bottom and 2.5mm2 wire terminal is available.
